IMEON 3 PHASE BATTERY SOLUTION

Special Offer

3 PHASE BATTERY SOLUTION

IMEON 3 Phase Inverter

IMEON 9.12 is dedicated to three-phase photovoltaic systems for self-production with storage. This solar hybrid inverter with a power of 9kW perfectly suits with residential, collective dwellings and small scale tertiary, industrial. It works in all configurations: Smart-Grid / Off-Grid / Back-Up / On Grid.

IMEON 9.12See More
Rated Output Power:9,000 W
Maximum Output Power:12,000 W
Maximum Input Current:17.5 A / phase
Maximum Input Power:Up to 12,000 Wp
Maximum Input Voltage:850 V
Maximum Efficiency:DC to AC: >94.5%
DC Nominal Voltage:>48 Vdc
Maximum Discharge Current:200 A
Protection Category:IP 20
Dimensions:580 x 800 x 240 mm
Weight:46 kg

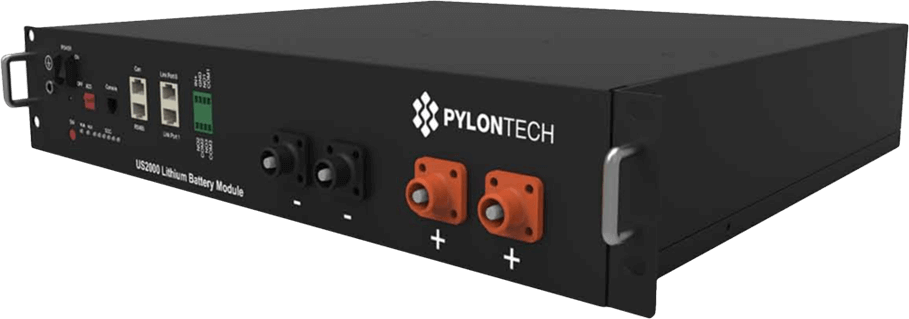

The New US2000B battery from Pylontech offers the perfect scalable battery storage solution. With each battery boasting 2.4kWh of potential storage capacity the customer is free to scale their system how they like, enabling up to 5.7kWh of usable energy (based on 3 batteries).

Trinabess Hybrid Inverter

Pylontech US2000BSee More
Nominal Capacity:50 Ah
Nominal Voltage:48 V
Discharge Voltage:45 ~ 54 V
Charge Voltage:52.5 ~ 54 V
Maximum Discharge Current:100 A (2C)@1Min
Maximum Charge Current:100 A (2C)@1Min
Life Cycle:>6,000 (80% DoD)
Depth of Discharge:80%
Working Temperature:0C – 50C
Dimensions:440 x 410 x 89 mm
Weight:24 kg

See it in action!

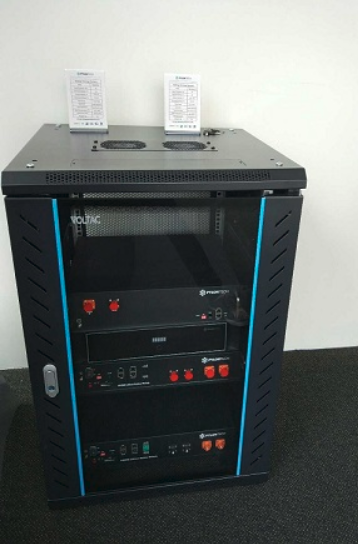

As you can see the Pylontech US2000B can scale very easily, while still looking sleek. This scalability is what makes this 3 phase system a fantastic solar solution for large residential or small commercial properties. Not only that, but the US2000B has a “plug and play” installation, making it extremely versatile. All this allows you to get the perfect solar battery system for your needs.

When coupled with our offering of high-efficiency solar panels, you can say goodbye to your high electricity bills.
Call now to start saving on 1800 155 597, or fill out the form at the end of this page.
